HD5 Surf

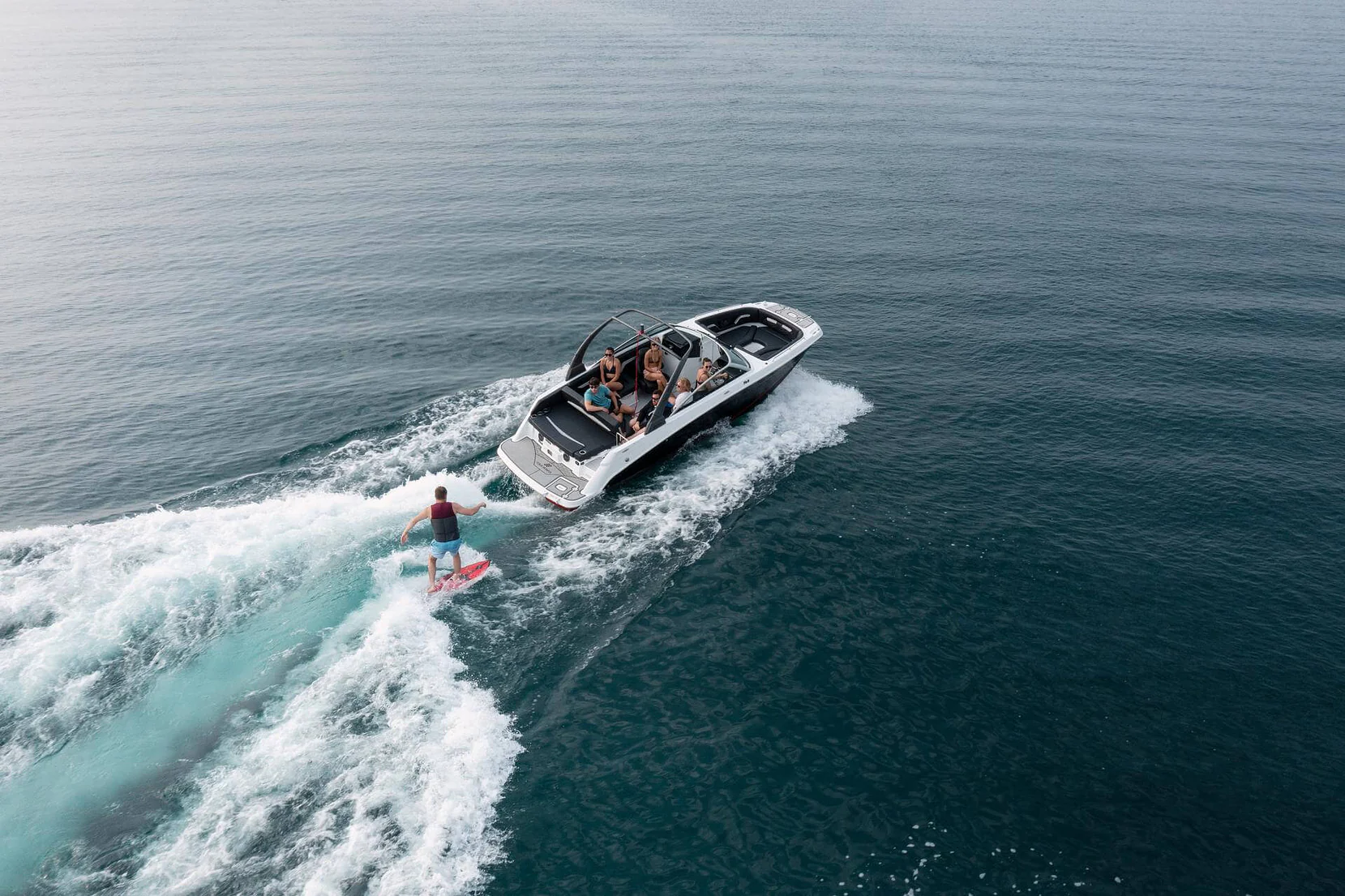

It's about time you found a new way to experience tow-boat potential. This hard-hitting Deck boat doesn't shy away from king-sized wakes and stays faithful to the quality comforts only found in a Four Winns. At 24 feet, the HD5 Surf is a quality craft certainly worthy of the most diehard wake sport experts.
LOA
24' 4"/7.4 m
Beam
8' 5"/2.54 m
Persons Capacity
13
people
/
10
CE
Fuel Capacity
55 gal/208 L
APPROX. WEIGHT
4860 lbs/2204 kg
GALLERY
SPECS
| Approx. Boat & Engine Weight | 4860 lbs | 2204 kg |
| Approx. Draft Down (FWD Drive) | 35" | 89 cm |
| Approx. Draft Up (FWD Drive) | 30" | 76 cm |
| Beam | 8' 5" | 2.54 m |
| Bridge Clearance | 4' 8" | 1.4 m |
| Bridge Clearance w/ Arch or Tower | 7' 7" | 2.3 m |
| Deadrise | 20° | 20° |
| Fuel Capacity | 55 gal | 208 L |
| Hull Length | 24' 3" | 7.39 m |
| L.O.A | 24' 4" | 7.4 m |
| LOA w/ extended swim platform | 26' 3" | 8 m |
| Maximum Capacity | 2000 lbs | 907 kg |
| Persons Capacity | 13 | 10 |
| Storage Length on Trailer | 24' 10" | 7.6 m |
| Total Height | 6' 4" | 1.9 m |
| Total height on Trailer | 8' 1" | 2.5 m |
| Trailer Weight Tandem Axle | 1505 lbs | 683 kg |
| Water Capacity | 12 gal | 45 L |
Hull Color
- Solid White
Hull and Deck
- Anchor locker w/ lid, latch & tie off
- Bow & stern eyes, stainless steel
- Bow rails, stainless steel
- Cleats, fixed, stainless steel
- Exterior color choices
- Exterior color, all white
- Exterior gel accent stripe, choice of color
- Fiberglass stringer system
- Horn
- Ladder, bow, wide-step, hidden, telescoping
- Ladder, stern, angled, deep-reach, hidden w/ wide steps
- Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
- Navigation lights, LED
- Port window, head
- Rub rail w/ stainless steel insert
- StableVee® hull Next Gen
- Swim platform, bow
- Swim platform, stern
- Terrace, Fold-Down Patio, Switch Operated, Port & Stbd
- Thru-hull fittings, stainless steel
- Windshield header, polished
- Windshield w/walk-thru, full-height, curved glass, exclusive design
- Winning edge owner protection plan
Tow Sports
- Ballast system
- Ski tow, stern, stainless steel
- Touch screen command center w/ speed control
- Wake enhancement tabs
Cockpit
- Assist handle(s), stainless steel
- Beverage holder(s), stainless steel
- Coaming pads w/ rich hand-fitted vinyl & comfort padding
- Cooler(s), built-in
- Cooler, carry-on
- Courtesy lights, Blue LED
- Fiberglass liner, skid-resistant, self-draining
- Interior color scheme, choice of color
- Seating, bow cushions, hinged
- Seating, cockpit, U-shaped
- Seating, ComfortRide, flip-up bucket bolster(s)
- Self-bailing cockpit
- Ski locker, in-floor, w/ gas-assist hinged lid & mat
- Storage, bow & cockpit, beneath seats
- Storage, bow, behind backrest at helm
- Storage, cockpit, sidewall storage w/ beverage holders
- Sun lounge, aft, convertible
- Trash receptacle(s)
- Upholstery, premium contoured vinyl w/ custom detailing
- Walk-thru transom
- Walk-thru transom door
- Water intrusion management system
Entertainment
- Speakers, (4)
- Stereo, w/ AM/FM radio, Bluetooth®
- USB port(s)
Helm
- Custom gauges, fog-resistant
- Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
- Depth sounder
- Emergency engine shut-off
- Instrumentation, helm: Medallion® touch screen, integrated gauges and cruise control
- Lighted switches, LED
- Steering wheel, deluxe, tilt
Engine / Systems / Drive
- Batteries dual w/ on-off switch
- Battery(ies)
- Bilge blower(s)
- Bilge pump(s), automatic
- Engine blower
- Engine vents
- Freshwater system
- Outlet, 12V
- Outlet, USB charge port(s)
- Trim switch, power at transom
- Wiring harness w/ sealed connectors and tin coating for corrosion resistance
Trailer
- Four Winns® custom-matched trailer w/ brakes, tandem axle
- Jack-stand, heavy-duty
- Self-centering bunks
- Submersible lighting, LED
- Swing-away tongue
- Wheels, aluminum
Stripe Color
- Stripe Denim Blue
Head / Changing Compartment
- Changing room
- Head, porta pottie, sink & light
Interior Color
- Lunar
Power Options
- MerCruiser 6.2L 300 Bravo IVS DTS ECT FFD
